Request Pricing or info on PBR Panel

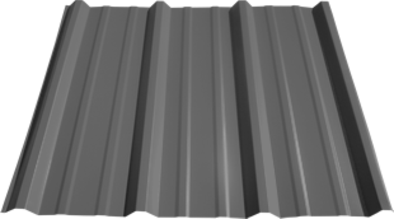

PBR Panel Metal Roofing / Siding


Our  PBR /  R  Panels are Metal roofing and siding panels. They are used in a wide variety of applications and are suited for open framing support conditions, as well as a solid substrate. The primarily use of PBR panel is  commercial and industrial buildings. The larger 1-1/4" high ribs make it a great choice for low slope roofs  it is rated for down to  a 1:12 pitch. The design of this metal panel also allow it to span greater distances on open purlin applications. We custom cut these panels to the inch from 1' to 40' long.


Specifications

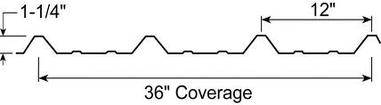

• 36" wide coverage
• 1-1/4" high ribs spaced 12" apart
• Can be installed over open framing or decking/plywood
• Gauges: 26ga and 24ga
• Finishes: Baked on enamal Paint or bare Galvalume®
• Warranty: Painted - 40 years, Galvalume® - 25 years
• Minimum Recommended Roof Slope 1:12
Energy Star® rated ​


Testing & Approvals
2010 FBC Approved: 26 ga over 1/2" Plywood 14645.11
2010 FBC Approved: 26 ga over 16 ga Girts 9482.4
2010 FBC Approved: 26 ga over 16 ga Purlins 10999.7
ASTM E 455 Diaphragm Test
Miami-Dade County Approved (NOA 03-1210.03, 09-0113.01) (24ga roof and wall)
Texas Windstorm Evaluation RC-198
UL 2218 Class 4 Impact Resistance
UL 580 Class 90 Wind Uplift Construction #161
UL 790 Class A Fire Resistance Rating
