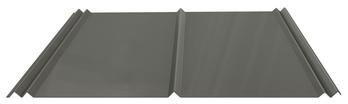

5V Crimp Metal Roofing Panel

The 5-v Crimp is one the original metal roofing panels to hit the market years ago. Many architects will still specify this panel for the older classic V rib and low profile look. It makes a great choice for any roof. We custom cut these panels to the inch.


Specifications
• 24" wide coverage
• 1/2" high ribs spaced 12" apart
• Can be installed over decking/plywood
• Gauges: 29ga and 26ga
• Finishes: Baked on enamel paint or bare Galvalume®
• Warranty: Painted - 40 years, Galvalume® - 25 years
• Minimum Recommended roof slope 3:12
Energy Star® rated


Testing & Certifications
Miami Dade County NOA #07-1114.01 Click here to see NOA
Florida Building Code Approvals
Texas Department of Insurance Approval #119
UL 790 Fire resistance Class 4
UL 580 Uplift UL Class 90 CONSTRUCTION #579
UL 2218 Impact resistance Class 4
Metal Construction Association (MCA) Certified

 Downloads

​• Panel Brochure

​• Color Chart

​• Install Guide

​• Trim Chart

​​• Technical Sheet

​​• Snow Guards
