Vertical Seam Standing Seam Panel

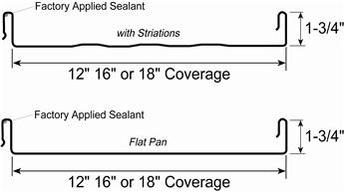

With a 1-3/4" high ribs, Vertical Seam standing seam Metal Roofing has the strength needed to be installed over either open framing or solid decking. This standing seam system is fastened using hidden clips. These clips allow for greater expansion and contraction of the panels, at the same time ensuring wind resistance. Vertical Seam is  approved to meet some of the most stringent requirements for high wind areas. Vertical Seam comes standard with striations to eliminate oil canning, but can also be made with flat pans. The panels are cut to the inch to meet your needs.

Specifications
• 12", 16" or 18'' wide coverage
• 1-3/4" high ribs
• Architectural / strctural integral Standing Seam Panel
• Concealed clip designed for thermal movement
• Can be installed over open  framing or solid substrate
• Gauges: 26, 24 and 22ga
• Finishes: Baked on enamal Paint or bare Galvalume®
• Warranty: Painted - 40 years, Galvalume® - 25 years
• Minimum Recommended roof slope 1:12 over Solid Substrate

• Minimum Recommended roof slope 3:12 over Open Framing
• Accommodates up to 4" blanket insulation
Energy Star® rated


Testing and Certifications

​2010 FBC Approved: 24 ga over 1/2" Plywood 11560.9
2010 FBC Approved: 26 ga over 1/2" Plywood 11560.10
ASTM E 1592 Roof Uplift Capacity
ASTM E 1646 Water Penetration
ASTM E 1680 Air Leakage
Miami-Dade County Approved (NOA 09-0423.05)
UL 2218 Class 4 Impact Resistance
UL 263 Fire Resistance Rating
UL 580 Class 90 Wind Uplift Construction #254, 255, 261, 303, 342, 343, 436, 445, 446, 447 and 448
UL 790 Class A Fire Resistance Rating
