Specifications
• Structural trapezoidal standing seam roof panel

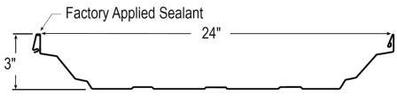

• 24" panel coverage, 3" rib height
• Gauges: 24 ga standard, 22 ga optional

• Minimum Recommended Roof Slope 1/4:12
• Factory-applied side lap sealant
• Snap together panel system
• Concealed clip designed for thermal movement
• Accommodates 1/2" to 6" blanket insulation
• Applies over open framing or solid substrate
• Finishes: Baked on enamel paint and Acrylic Coated Galvalume®

Snap lock 24 Commercial Standing Seam

This Standing seam with a 3" high rib is designed for commercial buildings. This Snap lock 24 panel  can span 5' on open purlins with no problem. The Snap lock is rated for 1/4:12 Pitch making it a great choice for nearly flat roof applications. This panel has a factory applied sealant in the lap for extra protection. We cut these panels  from 1' to 40' long exactly to the  inch to meet your needs.

Testing & Approvals

ASTM E 1592 Roof Uplift Capacity
ASTM E 1646 Water Penetration
ASTM E 1680 Air Leakage
ASTM E 330 Uniform Static Air Pressure Difference
UL 2218 Class 4 Impact Resistance
UL 263 Fire Resistance Rating
UL 580 Class 90 Uplift Construction #240
UL 790 Class A Fire Resistance Rating

 Downloads

​• Panel Brochure

​• 24 Gauge Color Chart

​• Install Guide

​​• Technical Sheet

​• Trim Chart
