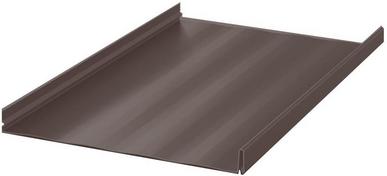

Snap-lock 150 Standing Seam

We provide Snap-Lock 150 custom cut to the inch per specifications. Any length is available from 3′ up to 45′. Snap-Lock 150’s design features 1.5″ tall ribs, spaced 16″ on center.

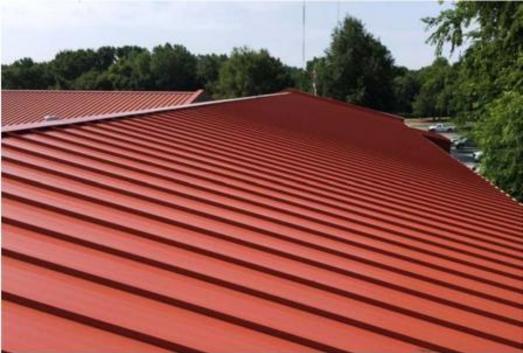

SL-150 is a snap lock standing seam roof panel that installs with concealed clips. The snap lock standing seam roof panel installation offers high levels of wind uplift protection and also allows the standing seam roof panels to float on the roof deck, allowing for greater expansion and contraction with temperature changes.


Specifications
• 16" wide coverage
• 1.5" high ribs spaced 16" apart
• Concealed Clip designed for thermal movement
• Can be installed over decking/plywood
• Gauges: 26ga and 24ga
• Finishes: Baked on enamal Paint or bare Galvalume®
• Warranty: Painted - 40 years, Galvalume® - 25 years
• Minimum Recommended roof slope 3:12
• Energy Star® rated

Testing & Certifications
Florida Building Code Approval
UL 580 Construction #589
UL Class 4 Impact
ASTM 331
ASTM E-330
ASTM 1592
ASTM 283

Request Snap-Lock 150 Pricing or info
