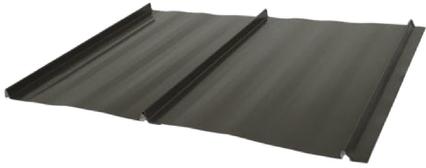

Standing Seam Image II
Our most popular standing seam roofing system, Image II Standing Seam is a hidden interlocking fastener system, hiding screws on both the panels and trim. The screws are fastened into a sidelap which is then hidden by the rib of the next panel. No clips are required, which saves time and money. we cutom cut these panels to the inch up to 40' long.
Specifications
• 16" wide coverage
• 1" high ribs spaced 16" apart
• Concealed fastened architectural panel
• Can be installed over decking/plywood
• Gauges: 26ga and 24ga
• Finishes: Baked on enamal Paint or bare Galvalume®
• Warranty: Painted - 40 years, Galvalume® - 25 years
• Minimum Recommended roof slope 3:12
• Energy Star® rated
Testing & Certifications
Dade County NOA #06-1002.15 compliant Click here to see NOA.
Florida Building Code Approval view files
Texas Department of Insurance Approval #118
UL 790 Fire Resistance Class A
UL 2218 Impact Resistance Class 4
UL 580 Uplift UL Class 90 Construction #529
Request Image II Pricing or info
