Chart is representative of colors and may vary due to scanning processes, resolutions, and monitors. See an actual color swatch or panel before ordering.


 Downloads

​• Panel Brochure

​• Catalog

​• Install Details

​​• Trim Placement Chart

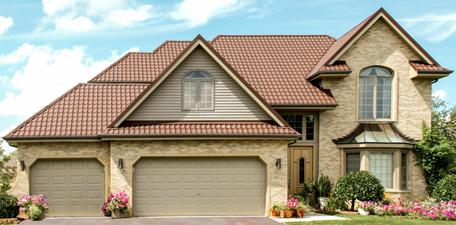

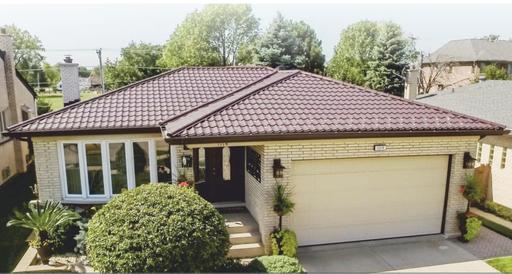

Alexxa Spanish - Mexican Clay Tile Metal Roofing

Alexxa Spanish tile is a metal roofing system designed to simulate the durable yet elegant look of Spanish - Mexican clay roofing tiles. Stamped from a tough 26 gauge steel product, our metal tile has many benefits. Spanish tile comes in full length metal panels custom cut to the inch. These panels are formed per specification from 3'-2" to 23' long, saving time and money when installing.We offer a full line of color matched trims and flashing to go along with these panels, such as barrel shaped ridge and hip caps and much more.

Specifications
• Architectural simulated-clay tile, metal roof panel

• Finish: Kynar® 500 PVDF Paint system
• Exposed direct-fastened panel
• Panel  width coverage is  (43-1/4")
• Panel lengths available: from 3'-2" to 23'
• 7-1/4" center to center of rib with 1-3/4" rib height
• Panel steps, 1/2" high at 13-3/4" center to center

• Minimum Recommended Roof Slope 3:12
• Warranty: Lifetime

​• Energy Star® rated


Testing & Approvals

UL 2218 Class 4 Impact Resistance

Steel: ASTM A 792
Coil Coating: ASTM A 755

Flame Spread Rating: ASTM E 84
UL 790 Class A Fire Resistance
